SS316 Flange stainless steel flexible hose

A SS316 flange stainless steel flexible hose is a flexible piping element used to transport materials ranging from natural gas and oil to steam and engine exhaust. Its main advantages over solid tubing and piping are that it provides additional protection against wear and pressure, and can suppress vibration and compensate for position offset. In addition, compared with many other types of hoses, 316 flange stainless steel flexible hose are not susceptible to high temperatures and pressures, and have a certain corrosion resistance.

The inner pipe is made of SS316 material, and the corrugated shape has two kinds of structures, spiral and annular corrugated, the outside of the corrugated pipe adds a layer of woven mesh sleeve to protect the pipe body and enhance pressure resistance, and the flange is all made of standard 316 material. The main connection method is a fixed flange at one end and a floating flange at another end. This connection structure is more flexible and convenient to install and reduces the workload of the installation personnel.

SS316 Flange stainless steel flexible hose parameters:

316 Flange stainless steel flexible hose advantages:

In highly corrosive environments (such as seawater and chloride environments), 316 stainless steel flexible hose perform better and can be used in industries such as Marine equipment and chemical equipment.

High temperature stability is better than 304 stainless steel flexible hose, can withstand higher force and pressure in high temperature environment.

316 Flange stainless steel flexible hose application:

Flange stainless steel flexible hose are crucial flexible connection components in industrial piping systems. With core performances such as corrosion resistance, high-pressure bearing capacity, flexible adaptation, and large-diameter transportation, they are widely used in multiple core fields.

Petrochemical industry:

They are applied in scenarios such as pipeline compensation, pump and valve connection vibration reduction, LNG low-temperature transportation, and ship power system connections, and can adapt to high temperatures (-200°C to 500°C), high pressures (0.6 - 4.0 MPa), and strong corrosive media (such as acids, alkalis, and oil and gas), ensuring the safety and stability of fluid transmission and the system under extreme conditions.

Energy and thermal systems:

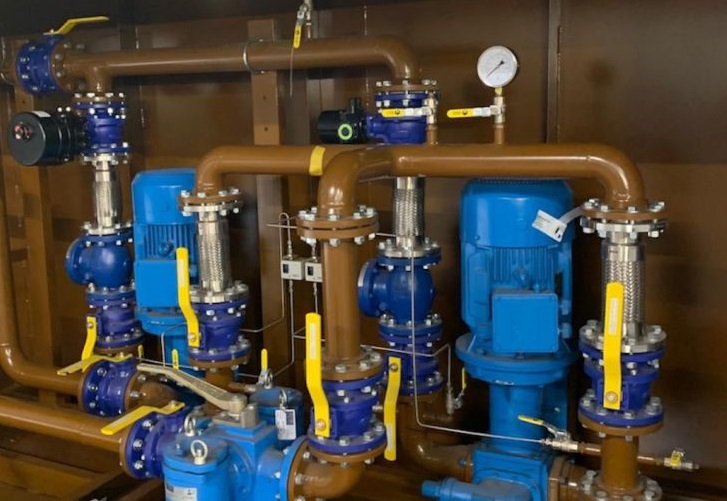

They are used in thermal network compensation, flexible connection of large air conditioning units, effectively absorbing the thermal expansion and contraction displacement of the pipeline due to temperature changes, avoiding the risk of pipeline deformation and rupture, and extending the service life of equipment.

Architecture and Municipal Affairs Field:

They are used for gas pipelines in clean workshops, fire protection pipelines, water plants/ drainage system pipelines for expansion compensation, adapting to installation environments with narrow spaces and complex pipe bends, and also have the advantage of quick installation.

The 316 flange flexible hose have superior corrosion resistance and are widely used in marine engineering, pharmaceuticals, food, and other corrosive environments, safely transmitting strong corrosive media, and possessing the characteristics of resistance to high and low temperatures and fatigue resistance. are crucial flexible connection components in industrial piping systems.

We are a professional supplier of SS316 flange stainless steel flexible hose in China, Please contact us for more information: info@apdhindustrial.com
