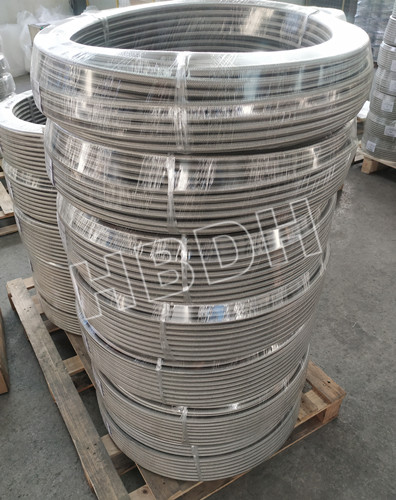

Stainless 316 Braided Ptfe Hose

316 Braided PTFE Hose Specifications refer to a type of industrial hose designed for high-performance applications. The hose is available in various diameters, ranging from DN3 (approximately 3mm) up to 100mm, catering to different flow requirements.

The inner tube can be either smooth (for better flow characteristics) or convoluted (for increased flexibility), depending on application needs. The hose features a reinforcement layer made of stainless steel 316 braiding, providing strength and durability while maintaining flexibility. Available in continuous lengths from 10 to 130 meters per roll, allowing for customization based on installation requirements. The braiding can be made from SS304 or SS316 stainless steel, with possible color-coding options for identification purposes.  Suitable for extreme temperature applications, maintaining performance in both cryogenic and high-temperature environments. The pressure rating varies with hose diameter, with a maximum capability of 260 bar (approximately 3770 psi) for certain sizes. These hoses are typically used in chemical processing, pharmaceutical, food and beverage, and semiconductor industries where corrosion resistance, high purity, and temperature stability are required. The 316 stainless steel braiding offers superior corrosion resistance compared to standard 304, making it suitable for more aggressive environments.

316 Braided Ptfe Hose Specifications:

1. DN3-100mm ptfe hose size

2. Smooth or convoluted bore inner hose

3. SS316 wire braided reinforced mesh layer

4. The length of the Ptfe hose: 10-130m/roll

5. Braided wire material: SS304 or 316, color wire, etc
6. Operating temperature range: -70℃ -- 260℃
7. Maximum working pressure: 260Bar (depending on hose diameter)

Typical Applications:

Chemical Processing (acid, solvent transfer)

Pharmaceutical & Food (sanitary, high-purity)

Semiconductor Manufacturing (ultra-clean environments)

Oil & Gas (corrosion-resistant fluid handling)

This 316 braided ptfe hose is ideal for industries requiring chemical resistance, high pressure, extreme temperatures, and flexibility. Would you like additional details on any specific aspect? For more details, please contact us: info@apdhindustrial.com
